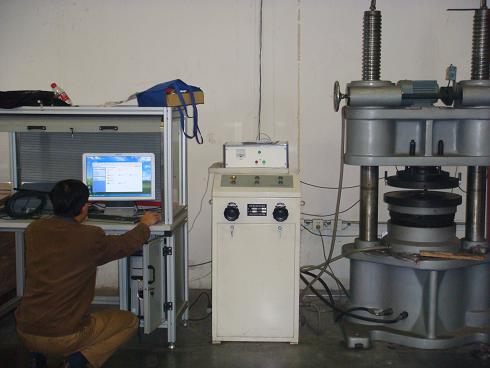

Unveiling Precision: The Ultimate Test Machine for Modern Industry
In the relentless pursuit of quality assurance and product reliability, the role of precision testing cannot be overstated. For engineers, quality control managers, and R&D professionals, having a robust, accurate, and versatile Test Machine is not just an advantage—it's a fundamental necessity. At Kaxite Sealing, we have channeled decades of engineering expertise into developing a next-generation testing apparatus designed to meet and exceed the rigorous demands of today's global industries. Our machine is engineered to deliver unparalleled accuracy in measuring tensile strength, compression, shear, flexural, and other critical material properties, ensuring your products perform flawlessly in real-world applications.
This comprehensive guide delves into the core specifications, operational capabilities, and the distinct advantages of the Kaxite Sealing Test Machine. We believe in transparency and providing you with all the technical data required to make an informed decision for your laboratory or production facility.
Core Technical Specifications & Parameters
The Kaxite Sealing Test Machine is built on a modular platform, allowing for customization based on specific testing standards (ASTM, ISO, DIN, etc.). Below are the detailed parameters that define its performance envelope.
Primary Performance Specifications
- Maximum Force Capacity: Available in multiple models ranging from 5 kN to 600 kN.
- Force Measurement Accuracy: ±0.5% of indicated load from 1/100 to 1/1 of machine capacity, compliant with Class 1 or better per ISO 7500-1/ASTM E4.
- Test Space (Width x Height): Standard 600mm x 1400mm; customizable dimensions available.
- Crosshead Speed Range: 0.001 to 1000 mm/min, electronically controlled with precise velocity feedback.
- Speed Accuracy: ±0.1% of set speed.
- Data Sampling Rate: User-selectable up to 2 kHz for high-resolution capture of material yield points.
- Displacement Measurement: High-precision encoder with resolution up to 0.04 µm.
- Power Supply: 3-Phase, 400V AC, 50/60 Hz (Standard); other configurations available.
- Control System: Advanced digital servo controller with PC-based software for complete test sequencing, data acquisition, and report generation.
- Software Compliance: Supports 21 CFR Part 11 for regulated industries with features like electronic signatures and audit trails.
Available Load Cells & Grips
Interchangeable load cells and a wide array of grips ensure the machine adapts to your specific material type.
| Load Cell Capacity | Recommended Use Case | Grip Type (Examples) | Suitable Material |
|---|---|---|---|
| 5 kN / 10 kN | Plastics, Films, Elastomers, Textiles, Adhesives | Manual Wedge Grips, Pneumatic Flat Grips, Peel Fixtures | Polymers, Thin sheets, Fabrics |
| 50 kN / 100 kN | Metals (Aluminum, Mild Steel), Composites, Construction Materials | Vice Grips, Serrated Jaw Grips, Compression Plates, Bend Fixtures | Metal alloys, CFRP, GFRP, Wood |
| 300 kN / 600 kN | High-Strength Alloys, Concrete, Reinforcing Bars, Automotive Components | Threaded Rod Grips, Large Compression Platens, Specialized Coupons | Steel rebar, Concrete cylinders, Forged parts |
Environmental Chamber Options (For Temperature Testing)
| Chamber Model | Temperature Range | Internal Test Space | Cooling Method |
|---|---|---|---|
| KT-TH-101 | -40°C to +180°C | 300mm x 300mm | Mechanical Refrigeration |
| KT-TH-201 | -70°C to +350°C | 400mm x 400mm | Cascade Refrigeration / Electric Heating |
| KT-TH-301 | -196°C (LN2) to +600°C | Custom | Liquid Nitrogen & High-Temp Furnace |
Kaxite Sealing Test Machine: Frequently Asked Questions (FAQ)
General & Application Questions
Q: What types of tests can I perform with the Kaxite Sealing Test Machine?
A: Our universal testing platform is extraordinarily versatile. It is configured to perform tensile, compression, flexural (3-point and 4-point bend), shear, peel, tear, and cyclic tests. With optional fixtures and software modules, you can also conduct crack propagation studies, stress relaxation, and creep tests. The machine is ideal for metals, polymers, composites, ceramics, textiles, rubber, adhesives, and biomedical materials.
Q: How does the Kaxite Sealing machine ensure measurement accuracy and repeatability?
A: Accuracy is engineered into every component. We use strain-gauge load cells calibrated traceable to NIST (or equivalent national standards). The rigid, high-stiffness load frame minimizes off-axis forces. The digital servo control system with closed-loop feedback maintains precise speed and position control. Furthermore, our proprietary software includes automatic calibration reminders and routines to ensure long-term accuracy and repeatability across different operators and labs.
Q: Can the machine be integrated into our automated production line for 100% testing?
A: Absolutely. The Kaxite Sealing Test Machine can be specified with an "Automation Ready" package. This includes programmable logic controller (PLC) interfaces, robotic arm mounting points, custom part conveyors, and I/O ports for seamless integration with MES (Manufacturing Execution Systems). We work with your automation team to develop a turnkey solution for high-volume, in-line quality testing.
Technical & Support Questions
Q: What software is provided, and what kind of data output can I expect?
A: The machine is controlled by our intuitive yet powerful "Kaxite TestSuite" software. It provides real-time graphs (load vs. displacement, stress vs. strain), automatic calculation of key results (Young's Modulus, yield strength, peak load, elongation at break), and customizable report templates in PDF, Excel, or XML format. The software database allows for easy test storage, retrieval, and comparative analysis.
Q: What is the typical lead time for delivery and installation?
A: For standard capacity models (up to 100 kN), the lead time is typically 6-8 weeks ex-works. Higher capacity or fully customized systems may require 10-12 weeks. Our global network of certified service engineers handles installation, on-site calibration, and comprehensive operator training to ensure you are productive from day one.
Q: What warranty and service support does Kaxite Sealing offer?
A: Every Kaxite Sealing Test Machine comes with a standard 24-month warranty on parts and labor, covering manufacturing defects. We offer various service contracts that include preventative maintenance, annual calibration, priority technical support (via phone, email, or remote desktop), and expedited spare parts shipment. Our goal is to maximize your uptime and investment.
Customization & Compliance
Q: Can the machine be customized for a specific test standard or unique sample geometry?
A: Yes, customization is a core strength at Kaxite Sealing. We have an extensive library of standard fixtures and regularly design special fixtures for unique applications—from medical stents to large automotive assemblies. Our engineering team can modify software test routines to comply with any published standard (ASTM, ISO, EN, JIS, etc.) or develop bespoke protocols for your internal specifications.
Q: Is the system compliant with good laboratory practice (GLP) and regulatory requirements for medical or aerospace industries?
A: The Kaxite Sealing Test Machine is designed with compliance in mind. The software's 21 CFR Part 11 module ensures data integrity, security, and audit trails—critical for FDA-regulated industries. The system can generate calibration certificates with full traceability, and our quality management system is ISO 9001 certified, providing the documentation needed for strict aerospace (e.g., NADCAP) or medical device audits.
Operational Advantages & Design Philosophy
Beyond the raw specifications, the Kaxite Sealing Test Machine embodies a user-centric design philosophy. The load frame features a low-profile base for easy sample loading. Safety is paramount, with integrated emergency stops, protective guarding, and software-interlocked safety limits. The noise levels are kept to a minimum (<70 dB) for a comfortable lab environment. Energy efficiency is achieved through regenerative drives that feed power back into the system during downward motion.
The modularity of the system means it can grow with your needs. Start with a basic configuration for tensile tests, and later add an environmental chamber, video extensometer, or a higher-capacity load cell without needing an entirely new frame. This future-proofing protects your capital investment.
